Introduction

On this page you find a short introduction to the most important parts of how to work with spreadsheets in Microsoft Excel

Cells

In all spreadsheets software, data is kept in a grid. Each box in the grid is called a cell. The grid is divided into columns (identified by by letters) and rows (identified by numbers).

Rows

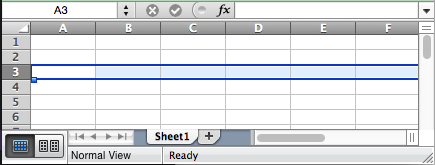

The rows are numbered. The column number indicates the vertical position of the row. Row 1 is the top row. In the below example, all the cells in row three has been selected.

Columns

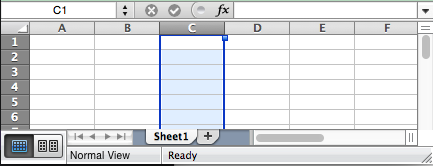

The columns are enumerated using letters. The column letter indicates the horizontal position of the column. Column A is the left most column. In the below example, all cells in column C has been selected.

Cell references

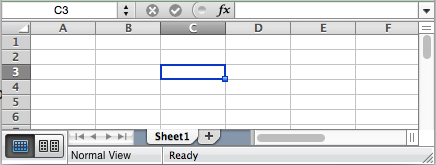

To refer to a specific cell in the grid, a combination of the column letter(s) and row number is used. In the below example, C3 refers to the cell in column C and row 3 in the grid.

Rectangular ranges

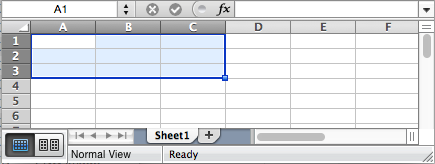

A rectangle of connected cells is called a (rectangular) range. A range is identified by the top left cell and the bottom right cell. The two cell references used to identify a range are separated by a : (colon). In the below example, the range A1:C3 has been selected.

Get started

Microsoft excel should be installed on the computers in the computer rooms at the university. You may also use your free Microsoft Live account to run excel in your web browser. Note that the online version of Excel does not support trendlines in graphs.

When you start Exel, choose blank page to start a new document. You should now see something similar to this.

You can now start entering numbers and text in the cells. Go to the File tab to save the document.

Entering numbers

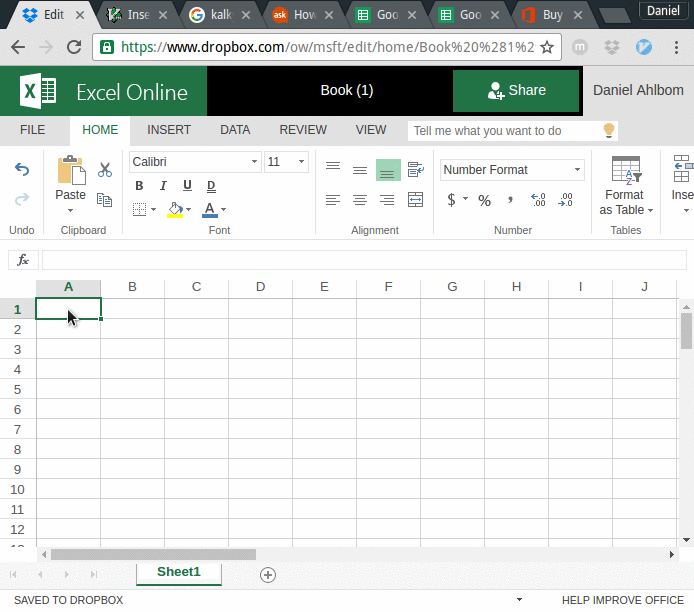

Excel has many smart functions that helps you entering numbers efficiently. You can test this by typing some numbers (pressing Enter takes you to the next row), highlighting them and clicking and dragging the mouse down from the lower right corner to create a series of numbers based on the selected numbers.

Formulas

In Excel, formulas are a way to perform calculations. For example, you can use the box just above the grid, where it says \(f_x\) on the left, to enter a formula.

You can test this by selecting an empty cell and typing 3 + 5 in the \(f_x\) box.

Formulas can use functions, which behave in much the same way as mathematical functions: they have arguments (input) and calculates a result (output). Excel has a large number of built-in functions.

By using formulas and functions, you can perform complex calculations in your spreadsheets.

Entering formulas as text

To demonstrate how to manually entering formulas, we use the SUM function. As the name implies, this function calculates the sum of a number of values.

Before proceeding, make sure you have some values in the range A1:B11.

In order for Excel to understand that you want to enter a formula in a cell you must start the formula with = (equal sign), followed by formula. Arguments to functions must be inside parentheses.

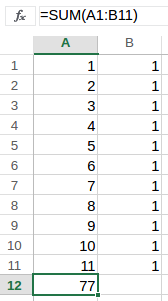

In the following example, we choose to place a formula in cell A12. Click on the cell A12 and enter the following inside the cell, then press Enter.

=SUM(A1:B11)

In this example, we have entered a formula. The formula uses the SUM function. The argument (input) to the SUM function is the range A1:B11.

The result (output) of the formula automatically shows in the cell A12. The result is the sum of the numbers in the range A1:B11. Change a few numbers in the range A1:B11 and see how the sum in cell A12 automatically is updated.

Entering formulas with the mouse.

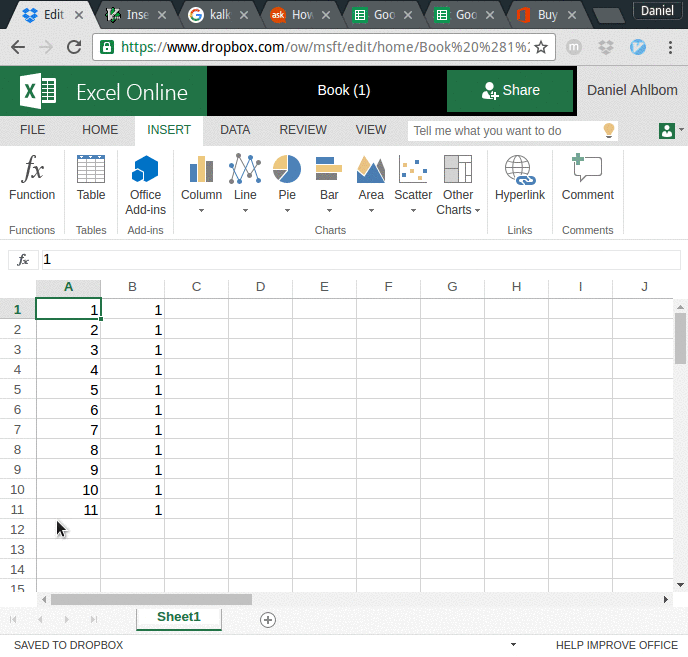

You can also entering formulas using the mouse.

1. Click on a cell.
2. Click on Insert -> Function.
3. Choose the function you wish to use from the menu.
4. Select the range to use as input to the function.
5. Finnish the formula by pressing on Enter.

Advanced formulas

You can construct more advanced formulas by combining arithmetic and functions.

• Arithmetic calculation are done using the usual symbols + (addition), - (subtraction), * (multiplication) and / (division). The symbol ^ is used for exponentiation.
• Parentheses are used for grouping.
• You can combine functions and arithmetic.
• Cell and range references can be us as input to functins.

Let’s look at an example.

In the above example, the formula =SUM(B1:B11) + A11 * 3 + LOG(16,2) has been entered in the cell C12.

• The sum of the range B1:B11 is added to the value in cell A11 multiplied by 3, finally the 2-log of 16 is added.

• The formula calculates \(11 + 11 \cdot 3 + 4\) and the result 48 is shown in cell C12.

Generate charts

One of the most important features in a spreadsheet is the ability to generate graphical charts. Select the range with data you want to use to create a chart. From the Insert tab, select the kind of chart you want to create.

In the following example, a pie chart is created from the data in the range A1:B11.

Editing charts

Once you created a chart the chart the be edited.

• Click on the Chart Title in the chart to change the title.

• To edit the chart type and other parameters, double click anywhere on the chart. Now a menu with chart settings will appear.

trendlines and regression analysis

The goal of regression analysis is to, based on observed data, create a function that describes it. One way to illustrate this is to use trendlines.

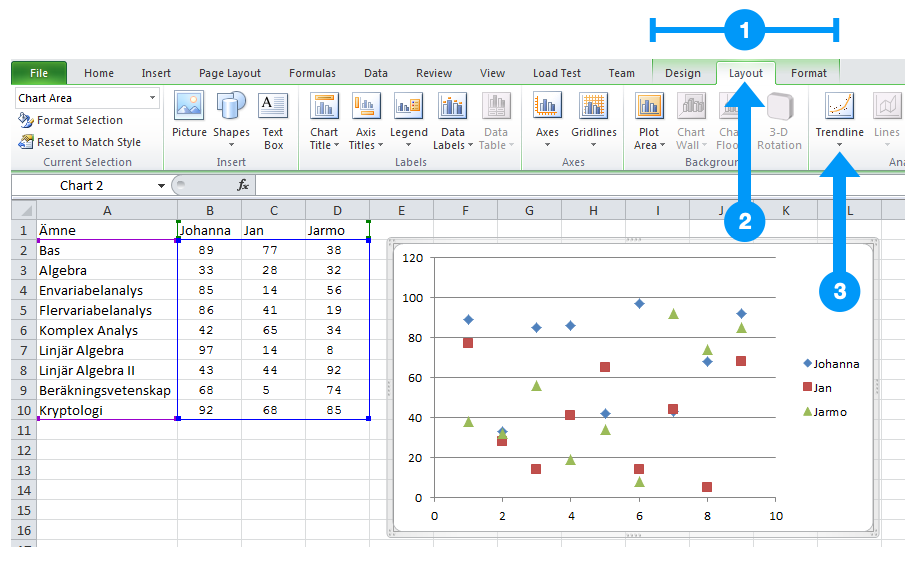

To add a trendline to a chart, first click on the chart. Now the tabs Design, Layout and Format appears to the to upper right (1).

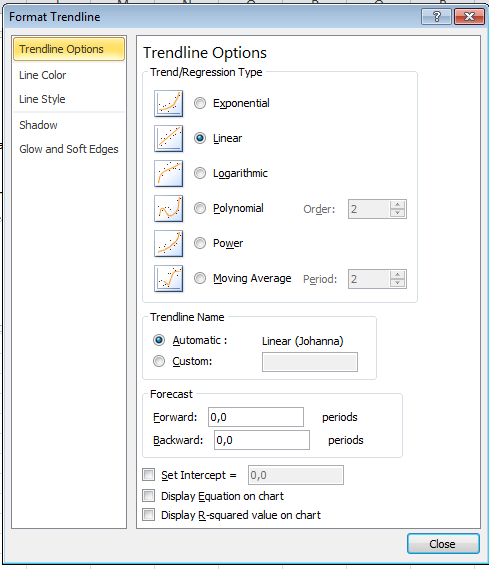

From the Layout tab (2), choose Trendline (3) to access the options for adding a trend line to the chart.

You can also click on an already added trendline to access the trendline settings.

Graphs are used to present data as clearly as possible. Use colors and other settings to make your graphs as easy as possible to understand.

In the following example, three different data series are represented with different colors and different symbols. Three trendlines with the same colors as the data series have been added.

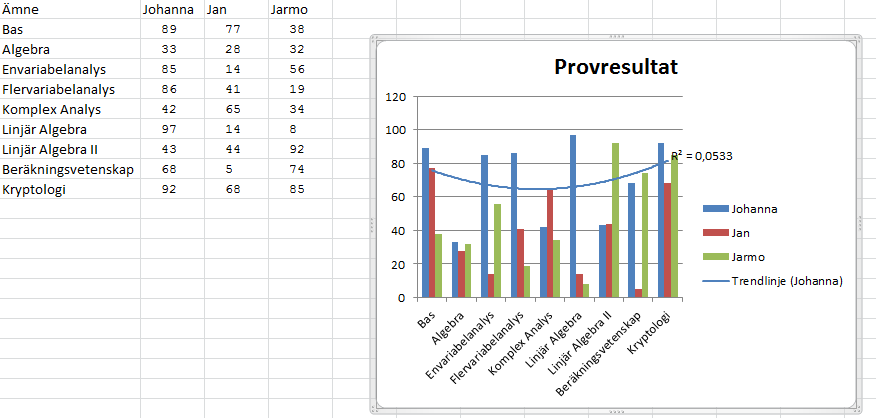

In the following example, a trendline has been added to a bar chart.

\(R^2\) is a measure of the goodness of fit of a model. In regression, the \(R^2\) coefficient of determination is a statistical measure of how well the regression predictions approximate the real data points. An \(R^2\) of 1 indicates that the regression predictions perfectly fit the data.

In the above example, random values have been used in the spreadsheet. The \(R^2\) value for the Johanna trendline is 0.0533, i.e, the trendline is not a very good fit to the data.
